Commercial Charger

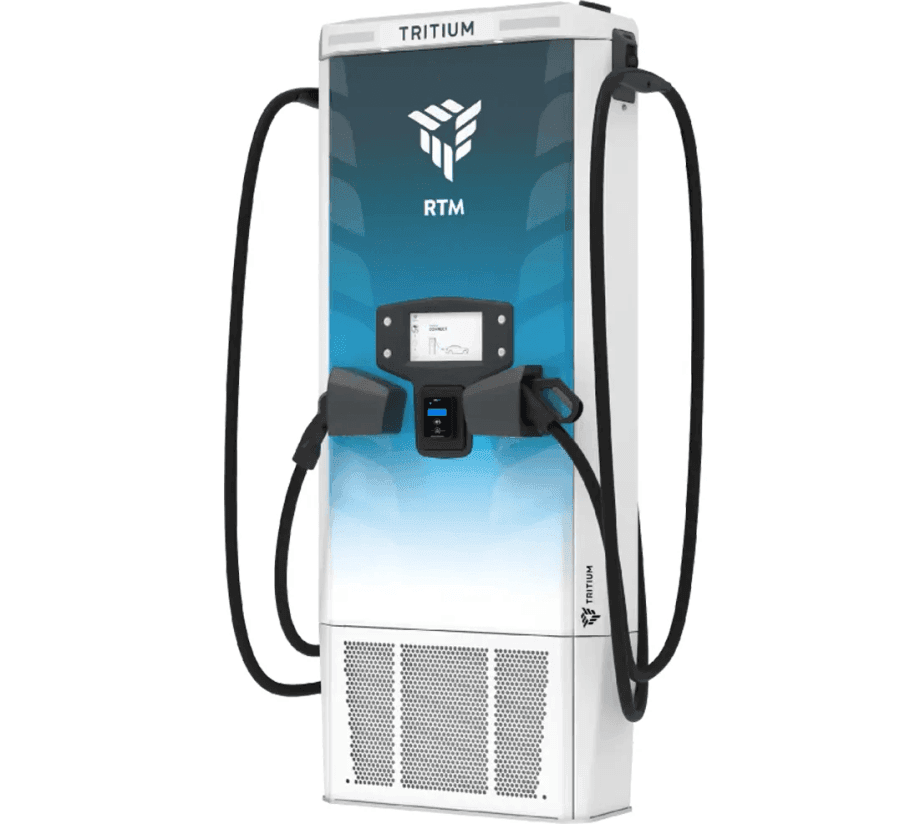

Tritium RTM75 RTM75 Dual CCS2
POA
Australian-made in Brisbane. The top-selling DC fast charger globally. Used by NRMA, Evie, Chargefox, Queensland Electric Highway. Liquid-cooled, modular design for easy servicing.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 75 kW |
| Rated Current | 200A (CCS2) |
| Charger Type | DC Fast Charger |
| Number of Ports | 2 (dual port) |
| Connector Type | CCS2 + CCS2, or CCS2 + CHAdeMO (6m cables) |
| IP Rating | IP65 |
| Enclosure Dimensions | 560 x 1620 x 330 mm |
| Weight | 170 kg |
| Cable Length | 6m cables per port |
| Display | 10-inch LCD display |
| Access / Auth Method | Plug & Charge (ISO 15118), RFID, app, contactless payment |
| Payment Options | Credit card, RFID, app, Plug & Charge |
| Suitable Applications | Public car parks, petrol/service stations, retail destinations, councils, highways, fleet depots |
| Operating Temperature | -35°C to +50°C |
| Warranty | 3 years |
| Country of Manufacture | Australia (Brisbane) |
