Commercial Charger

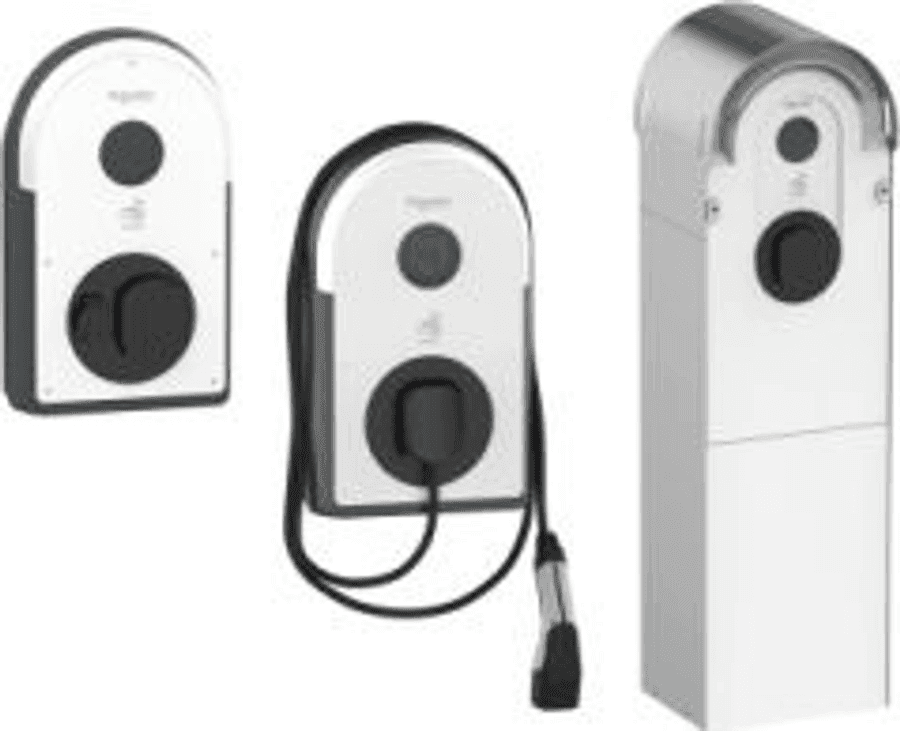

Schneider EVlink Pro AC EVlink Pro AC 7.4kW Single Phase
POA
3rd-gen commercial AC charger. SOCCI cybersecurity compliant. Widely used in managed car parks and fleet sites. Pedestal options available.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Single |
|---|---|
| Power | 7.4 kW |
| Rated Current | 32A |
| Charger Type | AC (Level 2) |
| Number of Ports | 1 |
| Connector Type | Type 2 socket or tethered cable (model dependent) |
| IP Rating | IP55 |
| Enclosure Dimensions | 230 x 360 x 140 mm |
| Weight | 4.5 kg |
| Cable Length | Untethered (socket) or tethered (model dependent) |
| Display | LED status indicator |
| Access / Auth Method | RFID card |
| Payment Options | RFID / backend billing |
| Suitable Applications | Commercial buildings, fleet depots, apartment blocks, government, corporate car parks |
| Operating Temperature | -30°C to +50°C |
| Warranty | 3 years |
| Country of Manufacture | China |
