Commercial Charger

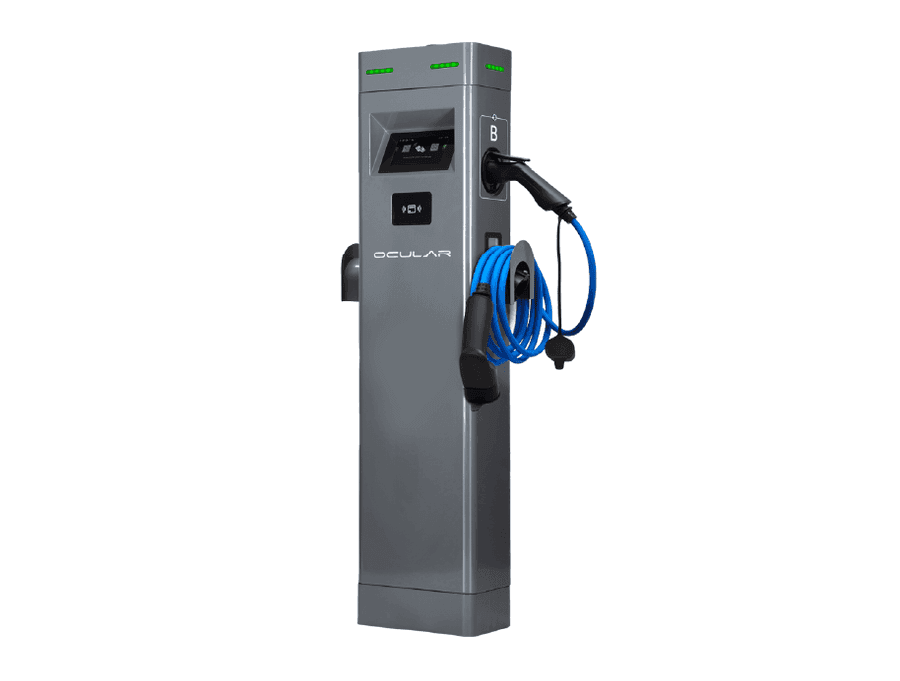

Ocular IQ Dual Tower IQ Dual Tower 22kW
POA
Floor-standing dual-port tower. Charges 2 vehicles simultaneously. Ideal for high-volume public sites.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 22 kW per port (44 kW total) |
| Rated Current | 32A per port |
| Charger Type | AC (Level 2) |
| Number of Ports | 2 (dual port) |
| Connector Type | Type 2 socket (untethered) |
| IP Rating | IP65 |
| Enclosure Dimensions | 400 x 1500 x 200 mm (floor pedestal) |
| Weight | ~35 kg |
| Cable Length | Untethered |
| Display | Large LCD screen |
| Access / Auth Method | RFID card, app |
| Payment Options | RFID / app / pay-per-use |
| Suitable Applications | Public car parks, shopping centres, councils, hospitality, apartment complexes |
| Operating Temperature | -30°C to +50°C |
| Warranty | 2 years |
| Country of Manufacture | China |
