Commercial Charger

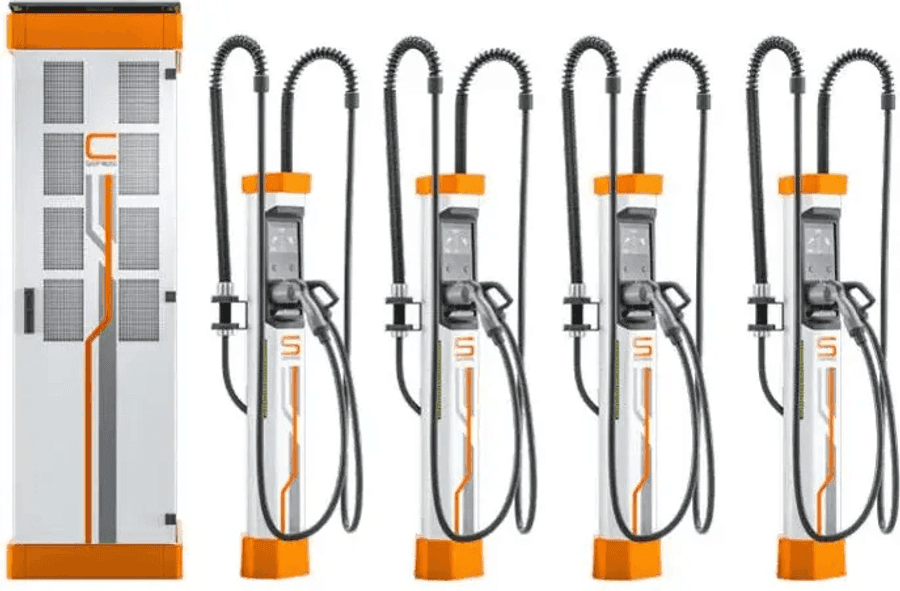

Kempower S-Series S-Series 150kW–400kW (scalable satellite system)
POA
Hub-and-satellite architecture maximises power efficiency. Used by Evie Networks across Australia. Scales easily as demand grows.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 150 kW – 400 kW per cabinet (dynamically shared across up to 8 connectors) |
| Rated Current | Up to 500A |
| Charger Type | DC Fast Charger (scalable hub+satellite) |
| Number of Ports | Up to 8 per cabinet (satellite dispensers) |
| Connector Type | CCS2 (5m spring-loaded cables) |
| IP Rating | IP54 |
| Enclosure Dimensions | Cabinet: 800 x 1900 x 600 mm Satellite: 250 x 1500 x 200 mm |
| Weight | Cabinet: ~450 kg |
| Cable Length | 5m spring-loaded cables per satellite |
| Display | 7-inch touchscreen per satellite |
| Access / Auth Method | Plug & Charge, RFID, contactless payment (QR code) |
| Payment Options | Credit card, RFID, Plug & Charge, QR code |
| Suitable Applications | Highways, petrol/service stations, large car parks, fleet depots, transit hubs |
| Operating Temperature | -30°C to +50°C |
| Warranty | 2 years |
| Country of Manufacture | Finland |
