Commercial Charger

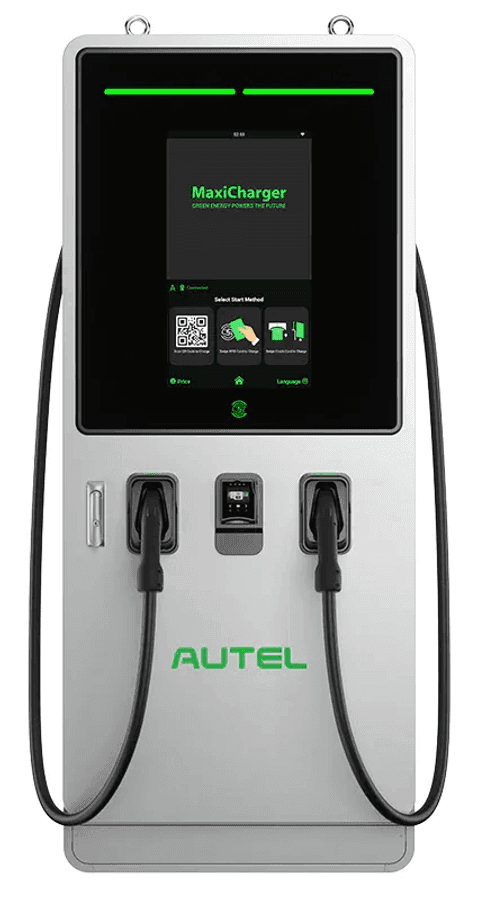

Autel MaxiCharger DC Fast DC Fast 60kW–240kW
POA
Adds 260km range in 10 minutes at 240kW. Features a 27" 4K advertising screen for CPO revenue. Designed for high-throughput public charging hubs.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 60 kW – 240 kW (configurable) |
| Rated Current | Up to 600A |
| Charger Type | DC Fast Charger (high power) |
| Number of Ports | 2 (dual port) |
| Connector Type | CCS2 + CHAdeMO or CCS2 + CCS2 |
| IP Rating | IP54 |
| Enclosure Dimensions | ~800 x 1900 x 500 mm |
| Weight | ~400 kg |
| Cable Length | Tethered cables |
| Display | 27-inch 4K touchscreen (advertising capability) |
| Access / Auth Method | RFID, Plug & Charge (ISO 15118), credit card, Apple Pay, Google Pay |
| Payment Options | Credit card, RFID, Apple Pay, Google Pay, Plug & Charge |
| Suitable Applications | Petrol/service stations, highways, fleet depots, large retail, transit hubs |
| Operating Temperature | -30°C to +50°C |
| Warranty | 3 years |
| Country of Manufacture | China |
