Commercial Charger

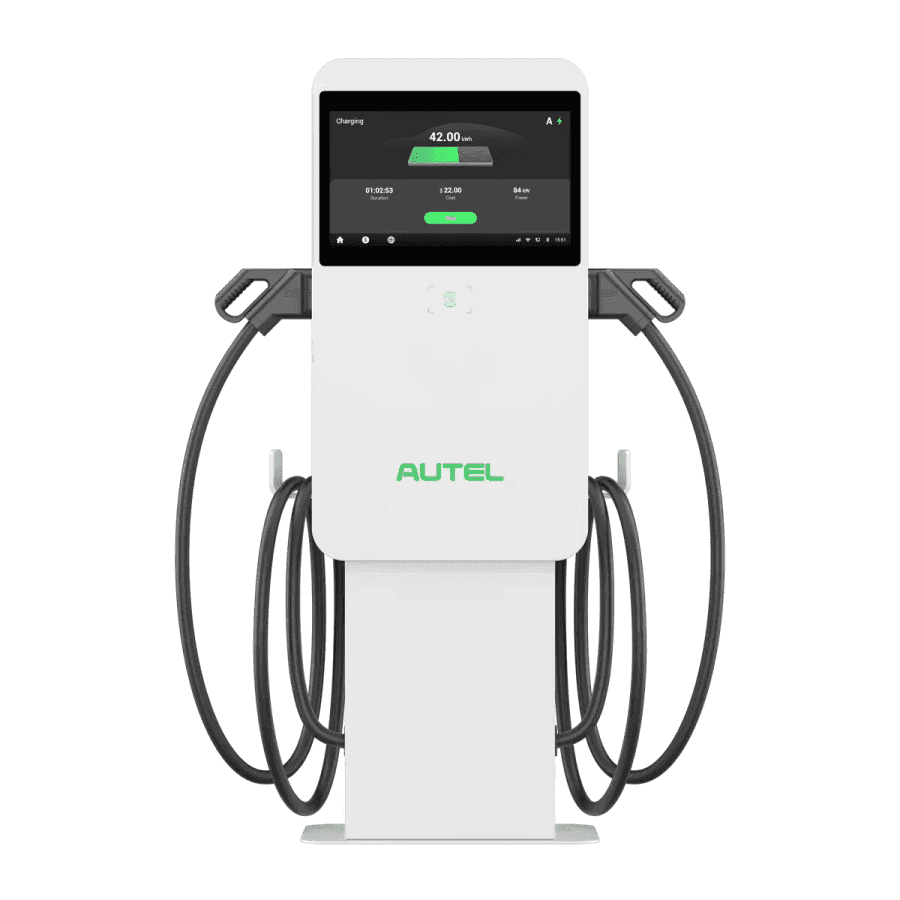

Autel MaxiCharger DC Compact DC Compact 50kW (Pedestal)
POA
Entry-level DC fast charger from Autel. Provides ~130km range from a 30-minute charge. Small footprint. Supported locally by JET Charge Australia.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 50 kW |
| Rated Current | 125A |
| Charger Type | DC Fast Charger |
| Number of Ports | 1 or 2 (model dependent) |
| Connector Type | CCS2 + CHAdeMO or CCS2 + CCS2 (5.5m cables) |
| IP Rating | IP54 |
| Enclosure Dimensions | 390 x 1590 x 380 mm |
| Weight | ~150 kg |
| Cable Length | 5.5m tethered cables |
| Display | 7-inch HD touchscreen |
| Access / Auth Method | RFID, Plug & Charge, credit card reader |
| Payment Options | Credit card, RFID, Plug & Charge, contactless |
| Suitable Applications | Petrol/service stations, retail car parks, fleet depots, councils, hospitality |
| Operating Temperature | -30°C to +50°C |
| Warranty | 3 years |
| Country of Manufacture | China |
