Commercial Charger

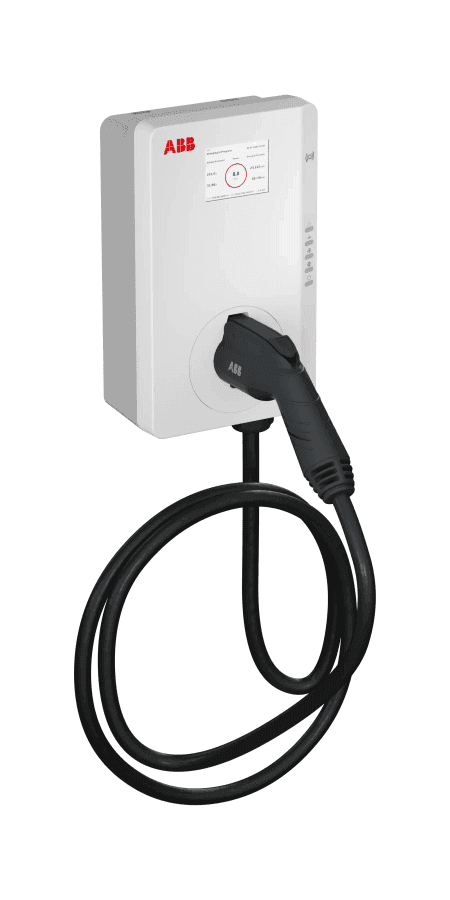

ABB Terra AC (Commercial) Terra AC W22
POA
Global ABB brand with strong Australian distribution. Suited for professional commercial and fleet installations.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 22 kW |
| Rated Current | 32A |
| Charger Type | AC (Level 2) |
| Number of Ports | 1 |
| Connector Type | Type 2 tethered (5m or 7.6m) |
| IP Rating | IP54 |
| Enclosure Dimensions | 320 x 195 x 110 mm |
| Weight | 6.5 kg |
| Cable Length | 5m or 7.6m tethered |
| Display | LCD display |
| Access / Auth Method | RFID card |
| Payment Options | RFID / backend billing / credit card (model dependent) |
| Suitable Applications | Commercial buildings, car parks, hospitality, fleet, government, universities |
| Operating Temperature | -35°C to +50°C |
| Warranty | 2 years |
| Country of Manufacture | Italy |
