Commercial Charger

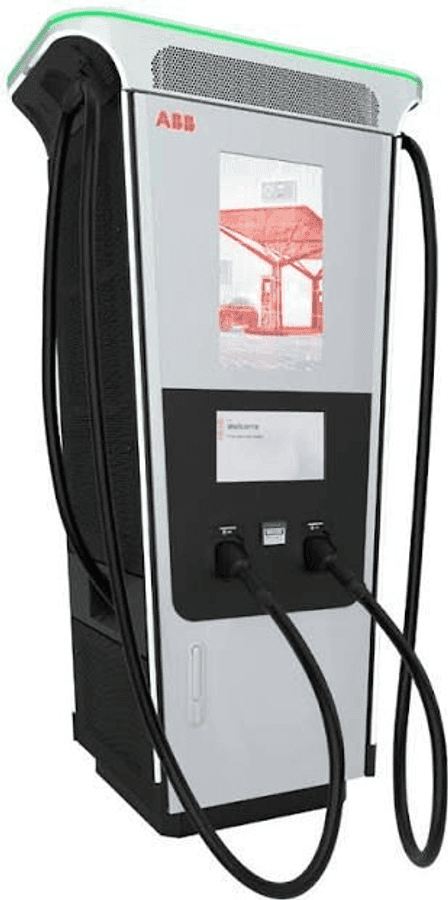

ABB Terra 360 Terra 360 (up to 360kW, 4 connectors)
POA
Adds 100km range in under 3 minutes at peak. ABB's flagship ultra-rapid charger. Widely deployed globally. Suitable for high-throughput petrol station replacement or roadside hubs.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | Up to 360 kW (dynamically shared across up to 4 connectors) |
| Rated Current | Up to 900A |
| Charger Type | DC Fast Charger (ultra-rapid) |
| Number of Ports | Up to 4 connectors |
| Connector Type | CCS2 (all 4 connectors) |
| IP Rating | IP54 |
| Enclosure Dimensions | 760 x 1870 x 470 mm |
| Weight | ~500 kg |
| Cable Length | Cable length options vary |
| Display | 10-inch colour touchscreen |
| Access / Auth Method | Plug & Charge (ISO 15118), RFID, contactless payment |
| Payment Options | Credit card, RFID, Plug & Charge, contactless |
| Suitable Applications | Petrol/service stations, motorway hubs, high-traffic retail, transit centres |
| Operating Temperature | -35°C to +50°C |
| Warranty | 2 years |
| Country of Manufacture | Italy (ABB Group) |
