Commercial Charger

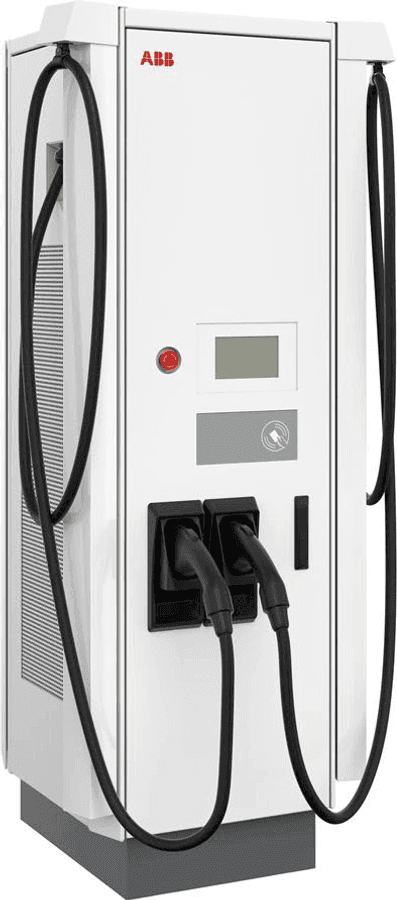

ABB Terra 124 Terra124 DC (120kW, 2 connectors)
POA
Mid-range DC fast charger well-suited to Australian car parks and destination charging. Proven ABB reliability. Available via EVSE Australia.
Features
Load Management / Balancing
Multi-user Support
Internet Connection
App Control
OCPP Compatible
Bi-directional (V2G/V2H)
Specifications
| Phase | Three |
|---|---|
| Power | 120 kW continuous (up to 60 kW per port) |
| Rated Current | Up to 350A |
| Charger Type | DC Fast Charger |
| Number of Ports | 2 (dual port) |
| Connector Type | CCS2 + CCS2 |
| IP Rating | IP54 |
| Enclosure Dimensions | 670 x 1820 x 385 mm |
| Weight | ~300 kg |
| Cable Length | Tethered cables |
| Display | 7-inch touchscreen |
| Access / Auth Method | RFID, Plug & Charge, contactless payment |
| Payment Options | Credit card, RFID, Plug & Charge |
| Suitable Applications | Car parks, retail destinations, workplaces, councils, fleet depots, petrol stations |
| Operating Temperature | -35°C to +50°C |
| Warranty | 2 years |
| Country of Manufacture | Italy (ABB Group) |
